Mold Transfer Silicone Ink Description:
3D molding silicone transfer has the characteristics of strong adhesion,good fastness,water-resistant and strong three-dimensional. FY mold silicone is also a main and hot selling silicone in our factory. And we have received unanimous praise from many domestic and foreign customers using our molding silicone.
How to make 3D mold silicone transfer 3D silicone transfer stickers on garment?

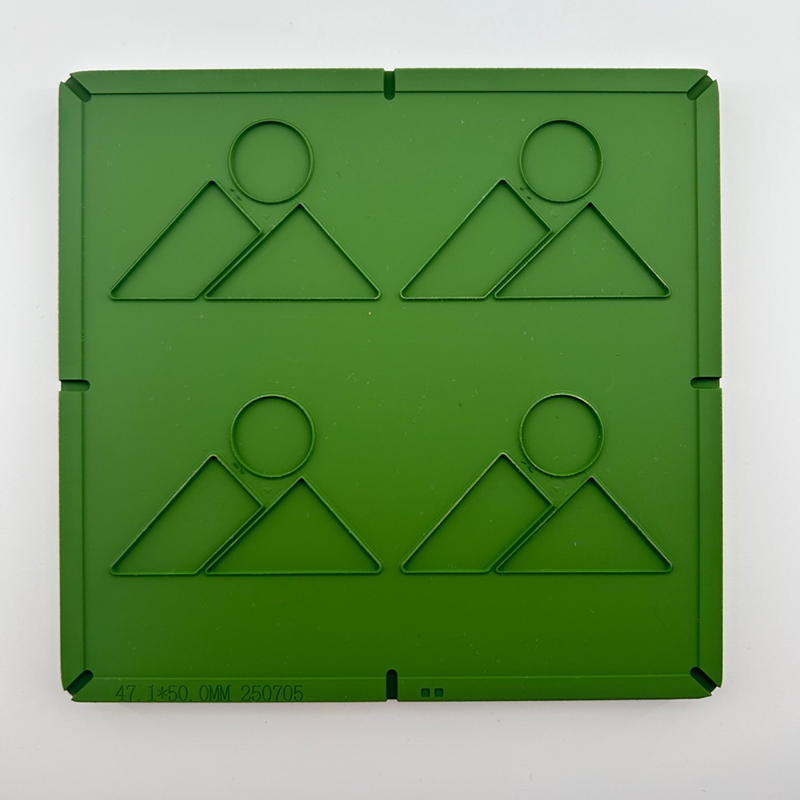

1st,Applying the following mixing mold transfer silicone on the mold
Mold silicone FY-3040 80 G
Silicone catalyst FY-010B 8G 10%
Silicone Pigments 4G 5%
2nd, Put the hot melt film, high temperature paper and cloth on the mold in order.
3rd. Machine heat press including vacuum , venting and curing together. The name of this machine is 3D transfer silicone label vulcanizing machine.
Cure temp : Upper temp 80-90 degree
Bottom temp 135-170 degree (temp depends on logo design and mold size)
Heat press for about 1 minutes including vacuum and curing.
4th,Cold the mold ,remove scrap material,Shift the stickers on the position paper.
5th Heat press silicone stickers on fabric or T-shirt.
Heat press 15-20 seconds by 160-170 degree
3D Mold Transfer Silicone Ink Specifications:
| Product Name | Molding silicone |
| Product Type | FY-3040 |
| Shore Hardness (Shore A) | 38-42 |
| Viscosity (mPa·s) | 45W-55W |
| Tensile Strength (MPa) | >4.0 |
| Elongation Rate | >300 |
| Tear Strength（KN/M） | >15 |
| Specific Gravity | 1.085 |
| Room Temperature Operation Time | >2 hours |
| Surface Drying Time of Thin Layer | Need heating |
| Catalyst/Curing Agent | FY-010B/011B |
| Mixing Ratio | 100:10 |
Choose FY silicone, you will learn more about the industry experience and you will get the most satisfied silicone product and make your business growing fast. Ola Jiang, Whatsapp +8613423132667.
